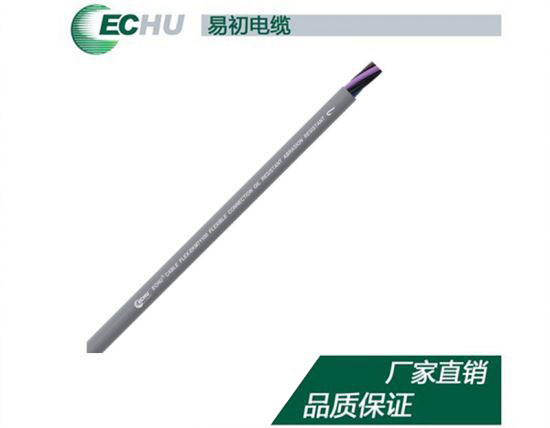

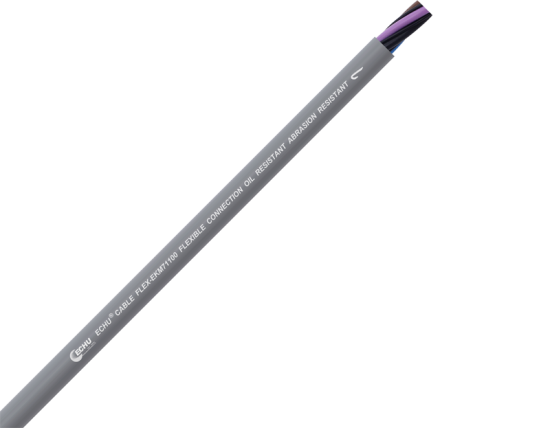

高度柔性耐弯曲电缆EKM71100

产品特性： 弯曲寿命2000万次以上。

防水、防油、耐寒、抗紫外线、耐磨、阻燃，适用于干燥或潮湿的室内，无强应力缓释或强制引导的自由连续往复运动下的安装，特别是工业使用环境下的频繁弯曲场合，如木工机械、机床加工设备、物流输送系统、起重机场合等。

导体：多股超细精绞无氧铜丝

绝缘:特殊混合PVC绝缘

颜色：≤0.5mm颜色表示，棕、黑、蓝、紫、粉红、橙

         >0.5mm黑色数字白色号码编号,3芯以上带有黄绿接地线 (黄绿可选）

护套：特殊改性PVC护套

          黑色(RAL9005)   灰色(RAL7001)   橙色（RAL2003）

额定电压：截面<0.5mm²:300/300V

                 截面≥0.5mm²::300/500V

测试电压：2000V

使用温度范围：  固定安装：-30°C至+90°C

说明：因拖链电缆属于特种电缆，受到敷设拖链的弯曲半径、移动速度、弯曲频率等技术及环节影响，选型时请参考工作人员专业建议，欢迎来电商讨！

规格列表（部分）：

EKM71100 2*0.1 EKM71100 3*0.1 EKM71100 4*0.1 EKM71100 5*0.1 EKM71100 6*0.1 EKM71100 7*0.1 EKM71100 8*0.1 EKM71100 9*0.1 EKM71100 10*0.1 EKM71100 12*0.1 EKM71100 14*0.1 EKM71100 16*0.1 EKM71100 20*0.1 EKM71100 30*0.1 EKM71100 30*0.1

EKM71100 2*0.14 EKM71100 3*0.14 EKM71100 4*0.14 EKM71100 5*0.14 EKM71100 6*0.14 EKM71100 7*0.14 EKM71100 8*0.14 EKM71100 10*0.14 EKM71100 12*0.14 EKM71100 14*0.14 EKM71100 16*0.14 EKM71100 18*0.14 EKM71100 20*0.14 EKM71100 30*0.14

EKM71100 2*0.2 EKM71100 3*0.2 EKM71100 4*0.2 EKM71100 5*0.2 EKM71100 6*0.2 EKM71100 7*0.2 EKM71100 8*0.2 EKM71100 9*0.2 EKM71100 10*0.2 EKM71100 12*0.2 EKM71100 16*0.2 EKM71100 20*0.2 EKM71100 30*0.2

EKM71100 2*0.25 EKM71100 3*0.25 EKM71100 4*0.25 EKM71100 5*0.25 EKM71100 6*0.25 EKM71100 8*0.25 EKM71100 10*0.25 EKM71100 12*0.25 EKM71100 16*0.25 EKM71100 20*0.25

EKM71100 2*0.3 EKM71100 3*0.3 EKM71100 4*0.3 EKM71100 5*0.3 EKM71100 6*0.3 EKM71100 7*0.3 EKM71100 8*0.3 EKM71100 10*0.3 EKM71100 12*0.3 EKM71100 14*0.3 EKM71100 16*0.3 EKM71100 18*0.3 EKM71100 20*0.3

EKM71100 2*0.34 EKM71100 3*0.34 EKM71100 4*0.34 EKM71100 5*0.34 EKM71100 6*0.34 EKM71100 7*0.34 EKM71100 8*0.34 EKM71100 10*0.34 EKM71100 12*0.34 EKM71100 14*0.34 EKM71100 16*0.34 EKM71100 18*0.34 EKM71100 20*0.34

EKM71100 2*0.4 EKM71100 3*0.4 EKM71100 4*0.4 EKM71100 5*0.4 EKM71100 6*0.4 EKM71100 7*0.4 EKM71100 8*0.4 EKM71100 10*0.4 EKM71100 12*0.4 EKM71100 20*0.4

EKM71100 2*0.5 EKM71100 3*0.5 EKM71100 4*0.5 EKM71100 5*0.5 EKM71100 6*0.5 EKM71100 7*0.5 EKM71100 8*0.5 EKM71100 9*0.5 EKM71100 10*0.5 EKM71100 12*0.5 EKM71100 14*0.5 EKM71100 16*0.5 EKM71100 18*0.5 EKM71100 20*0.5 EKM71100 24*0.5 EKM71100 25*0.5 EKM71100 30*0.5

EKM71100 2*0.75 EKM71100 3*0.75 EKM71100 4*0.75 EKM71100 5*0.75 EKM71100 6*0.75 EKM71100 7*0.75 EKM71100 8*0.75 EKM71100 9*0.75 EKM71100 10*0.75 EKM71100 12*0.75 EKM71100 13*0.75 EKM71100 14*0.75 EKM71100 15*0.75 EKM71100 16*0.75 EKM71100 18*0.75 EKM71100 20*0.75 EKM71100 24*0.75 EKM71100 25*0.75 EKM71100 30*0.75

EKM71100 2*1.0 EKM71100 3*1.0 EKM71100 4*1.0 EKM71100 5*1.0 EKM71100 6*1.0 EKM71100 7*1.0 EKM71100 8*1.0 EKM71100 9*1.0 EKM71100 10*1.0 EKM71100 12*1.0 EKM71100 14*1.0 EKM71100 16*1.0 EKM71100 18*1.0 EKM71100 20*1.0 EKM71100 24*1.0 EKM71100 25*1.0 EKM71100 30*1.0

EKM71100 2*1.5 EKM71100 3*1.5 EKM71100 4*1.5 EKM71100 5*1.5 EKM71100 6*1.5 EKM71100 7*1.5 EKM71100 8*1.5 EKM71100 9*1.5 EKM71100 10*1.5 EKM71100 12*1.5 EKM71100 14*1.5 EKM71100 16*1.5 EKM71100 18*1.5 EKM71100 20*1.5 EKM71100 24*1.5 EKM71100 25*1.5 EKM71100 30*1.5

EKM71100 2*2.0 EKM71100 3*2.0 EKM71100 4*2.0 EKM71100 5*2.0 EKM71100 6*2.0 EKM71100 7*2.0 EKM71100 8*2.0 EKM71100 9*2.0 EKM71100 10*2.0 EKM71100 12*2.0 EKM71100 14*2.0 EKM71100 16*2.0 EKM71100 18*2.0 EKM71100 20*2.0 EKM71100 24*2.0 EKM71100 25*2.0 EKM71100 30*2.0
